RS485/422 4x2x0.34mm²I-SZZH-SHF1

Inkcazelo emfutshane:

Isicelo: Ufakelo lwe-Shipboard, iNdawo yaseLwandle, ukufakwa okuFixiweyo okanye okuphathekayo, ukusetyenziswa kwangaphakathi, ukufakwa okusisigxina, amaxabiso aphezulu edatha, iiNqanawa, i-Speed ​​​​High & Light craft.RS422 RS485.


RFQ

Iinkcukacha zeMveliso

Iithegi zeMveliso

Isicelo: Ufakelo lwe-Shipboard, iNdawo yaseLwandle, ukufakwa okuFixiweyo okanye okuphathekayo, ukusetyenziswa kwangaphakathi, okusisigxina
ufakelo, Amazinga aphezulu edatha, iiNqanawe, isantya esiphezulu & iCraft Light.RS422 RS485.
Ibhatyi yangaphandle : LSZH
Ububanzi bangaphandle: 15.5±0.20 mm
Ubunzima: 270 kg/km
Imigangatho: IEC 60092-1, IEC 60332-3-22 , IEC 60754-1/2,
IEC 61034-1/2, IEC 60794, IEC 60092-359

Uyilo kunye noKwakha

IKondi: Ubhedu oluTintshwe ngeTinki
Ubungakanani bomqhubi: 7/0.25±0.01mm
I-Insulation: i-Polyethylene yegwebu
I-Insulation OD: 3.0±0.15mm
Ikhowudi yoMbala weConductor: White X Blue, White X Orange, White X Green, White X Brown
Ikhuselo le-foil: I-Aluminiyam / i-Polyester Foil
Ibraid: Ucingo lwekopha olunkonkxiweyo
I-Braid coverage: ≥80%
Ibhatyi yangaphandle: LSZH SHF1
Ibhatyi yangaphandle ye-OD: 15.5±0.20 mm
Umbala webhatyi yangaphandle: EMNYAMA (ukhetho)

Iipropati zokusingqongileyo kunye neeNdlela zokuSebenza zoMlilo

Iqondo le-acidity yeegesi: IEC 60754-1/2
Irhasi yeHalogen acid: IEC 60754-1/2
Ukukhutshwa komsi: IEC 61034-1/2
Ukubuyiswa komlilo: IEC 60332-1
Isithinteli somlilo: IEC 60332-3-22

Iimpawu zombane

Ukuphazamiseka: 100Ω
Ukumelana ne-DC: 14 dB/Km max.@ 20°C
Umthamo: 42.0 PF/m
Amandla ombane: 300V
Ubushushu bokusebenza: -40 ° + 75 °
Ukuchasana kwe-UV: Ewe

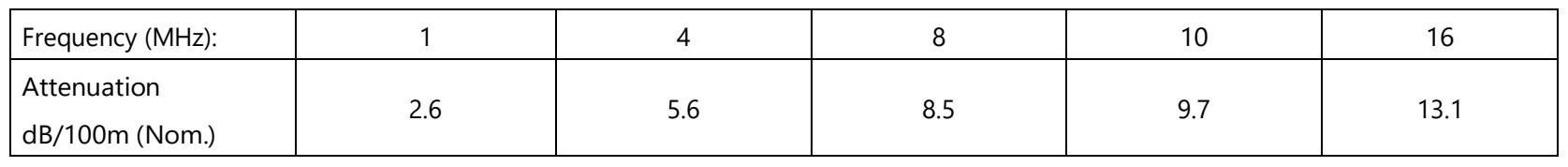

Iipropati zoMbane

微信图片_20220725112202

© 2021 Yanger Marine
Wonke Amalungelo Agciniwe.
IYanger (Shanghai) Marine Technology Co., Ltd (Yanger) inelungelo lokwenza utshintsho kwiinkcukacha zeemveliso ngaphandle kwesaziso sangaphambili.Imizobo inako
ingabi sisikali kwaye ibonelelwe ngeenjongo zolwazi ngokubanzi kuphela.Ulwazi oluqulethwe kule khathalogu yipropathi yobunini yeYanger,
kwaye ayinakusetyenziswa, iveliswe ngokutsha okanye ibhengezwe kwabanye ngaphandle kwesigunyaziso esibhaliweyo seYanger.
